CE6865 - 48S8CQ - EI Huawei Network Switches 48 Port QSFP28 Without Fan Power Module

Brand Name : Huawei

Model Number : 6865-48S8CQ-EI

Certification : CE

Place of Origin : China

Model : CE6865-48S8CQ-EI

Product detail : CE6865-48S8CQ-EI Switch(48-Port 25GE SFP28,8*100GE QSFP28,Without Fan and Power Module).

Uplink Ports : 8 x 40/100 GE QSFP28

Buffer : 32 MB

ARP table size : 256K

Type : Enterprise Switch

Selling Units : Single item

Condition : Original Brand

Fixed Ports : 48 x 10/25 GE SFP28

Forwarding Rate : 2000 mpps

Maximum Power Consumption : 282 W

IPv6 ND table size : 80K

Contact Now

Huawei CE6865 - 48S8CQ - EI Switch 48Port 25GE SFP28 8 * 100GE QSFP28 Without Fan and Power Module

Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series also features an advanced hardware design combined with either 10 GE or 25 GE access interfaces and 40 GE or 100 GE uplink interfaces, advanced data center features, high-performance stacking technologies, and flexible airflow capabilities. CloudEngine 6800 series switches are well suited for both the core and aggregation layers, and are fully compatible with CloudEngine 16800 and 12800 series switches, further enabling enterprises to build scalable, simplified, open, and secure networks.

Specification

Parameters
CloudEngine 6865-48S8CQ-EI
Downlink Ports
48 x 10/25 GE SFP28
Uplink Ports
8 x 40/100 GE QSFP28
Switching Capacity
4 Tbit/s
Forwarding Rate
2000 mpps
Buffer
32 MB
Reliability
LACP
Microsegmentation
Hardware-based BFD
O&M
Telemetry
Netstream
sFlow
Enhanced ERSPAN
Data Center Features
VXLAN routing and bridging
BGP EVPN
M-LAG
DCBX, PFC, and ETS
Maximum Power Consumption
470 W
Power Supply
AC: 600 W
DC: 600 W
Operating Voltage
AC: 90–290 V
DC: –38.4 V to –72 V

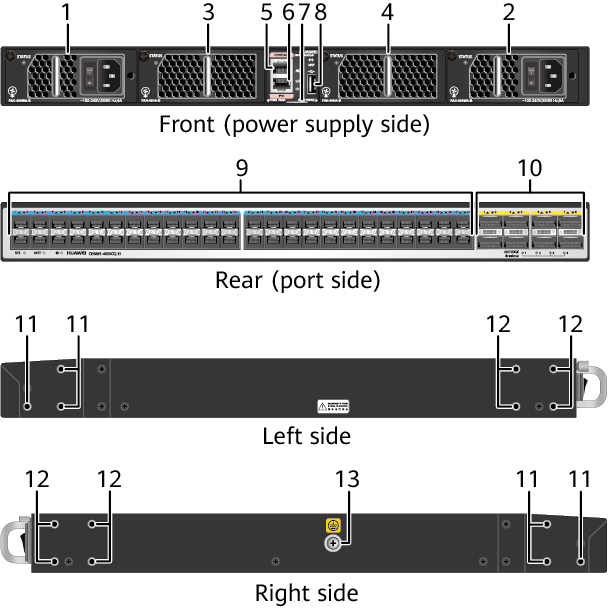

CE6865-48S8CQ-EI Appearance and Structure Figure 3-2 CE6865-48S8CQ-EI
CE6865 - 48S8CQ - EI Huawei Network Switches 48 Port QSFP28 Without Fan Power Module
1
Power supply slot 1
2
Power supply slot 2
Applicable power modules:
Applicable power modules:
350 W DC Power Module (PDC-350WA)
350 W DC Power Module (PDC-350WA)
600 W AC Power Module (PAC-600WA)
600 W AC Power Module (PAC-600WA)
600 W DC Power Module (PDC600S12)
600 W DC Power Module (PDC600S12)
3
Fan slot 1
4
Fan slot 2
Applicable fan modules:
Applicable fan modules:
FAN-40HA series fan modules
FAN-40HA series fan modules
5
Console port
6
ETH management port (RJ45)
7
Barcode label
8
USB port
9
Forty-eight 10GE/25GE SFP28 Ethernet optical ports
10
Eight 40GE/100GE QSFP28 Ethernet optical ports
Applicable modules and cables:
NOTE:
10GE optical module (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported)
A QSFP28 Ethernet optical port can be split into four 10GE or 25GE ports.
GE Optical Modules (supported from V200R005C00 version)
Applicable modules and cables:
GE copper module (supported from V200R005C00 version and only works at 1000 Mbit/s)
40GE optical module
25GE optical module (only supports SFP-25G-SR)
100GE optical module (QSFP28-100G-4WDM-40 not supported)
SFP+ AOC cable
QSFP+ to QSFP+ AOC cable
SFP28 AOC cable
QSFP+ to 4*SFP+ AOC cable
SFP+ high-speed cable
QSFP+ to 4*SFP+ high-speed cable
SFP28 high-speed cable
QSFP+ to QSFP+ high-speed cable
QSFP28 to 4*SFP28 high-speed cable
11
Three port-side mounting holes for mounting brackets
12
Four power-supply-side mounting holes for mounting brackets
13
Ground screw
-
-

CE6865 - 48S8CQ - EI Huawei Network Switches 48 Port QSFP28 Without Fan Power ModuleCE6865 - 48S8CQ - EI Huawei Network Switches 48 Port QSFP28 Without Fan Power Module
